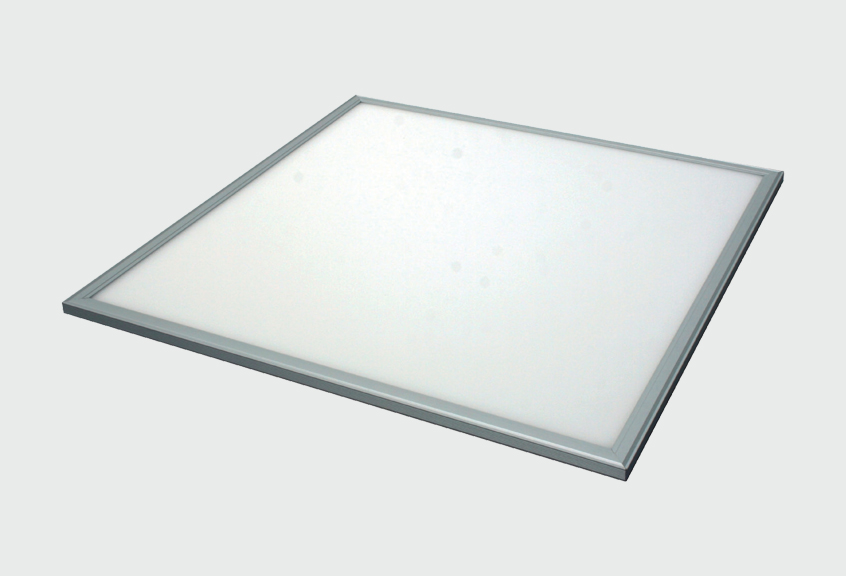

The Luxon LED Panel Light is a premium lighting solution engineered for energy efficiency, durability, and superior visual comfort. Designed with LUMILEDS SMD2835 technology, it provides a consistent and uniform light output, ensuring bright and glare-free illumination across a wide area. With a slim profile and modern aesthetics, it blends seamlessly into offices, schools, hospitals, retail outlets, and commercial spaces.
Built to last, the panel delivers an impressive lifetime of over 50,000 hours, drastically reducing maintenance costs and ensuring long-term reliability. The advanced driver system operates with a power factor greater than 0.9 and THD < 15%, guaranteeing stable performance and energy savings.
Technical Data
| TYPE | L05 / L06 / L07 |
| Size (mm) | L595*W595*H32 / L595*W1195*H32 / L595*W595*H32 |
| Input | AC200~240V |
| Frequency domain | 50/60 Hz |
| Power (W) | 30W / 72W |
| Lumen efficiency | 100 lm/W |
| Lumens (lm) | L05 : 30W/2800lm, L06 : 72W/7900lm, L07 : 30W/3000lm |
| Power Factor (PF) | > 0.9 |
| THD | < 15% |
| CCT | 3000K / 4000K / 6500K |
| CRI | Ra≥80 |
| SDCM | < 6 |
| Beam Angle | 120° |
| UGR | UGR<23 |
| LEDs | LUMILEDS SMD2835 |
| Life Span (hrs) | ≥50000H |
| Material | Aluminium+Iron+PS+PMMA |
| Body color | White |
| IP | IP20 / IP54 |
| Operating temperature | -20°C ~ 45°C |
| Operating humidity | 10% ~ 90% R.H. |
| Stocking temperature & humidity | -40°C ~ 80°C, 5% ~ 95% R.H. |
